INSTALLING BACKGROUND PAPER TO ROLLER WITH A LONG CORE

1. Insert roller in fiber core.

2. Place clamp on exposed core end; fasten firmly in place.

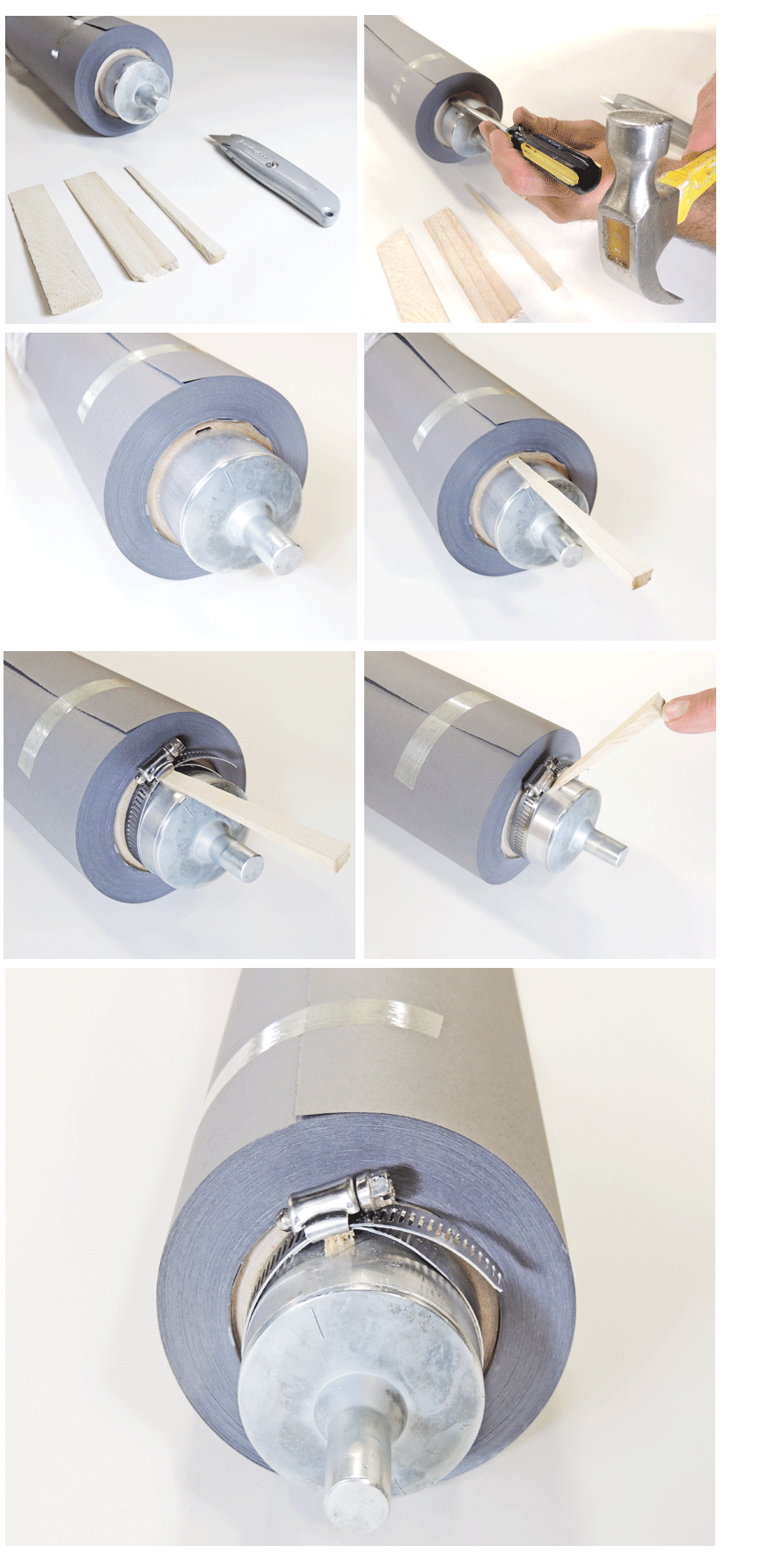

INSTALLING BACKGROUND PAPER TO ROLLER WITH A SHORT CORE

1. Insert roller in fiber core.

2. Make a small pilot hole carefully with a flat head screw driver and small hammer, cut a 1/4" piece from a wood shim,  gently hammer shim between aluminum roller and core to a depth of 1" to 1.5".

3. Install core clamp, and remove the balance of the shim that is sticking out.

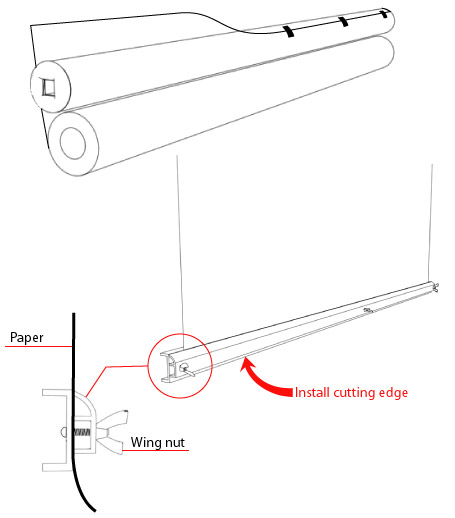

APPLYING BACKGROUND TO ROLLER (NON-CORE WOUND BACKGROUND)

1. Unwind background approximately 3 inches.

2. Place aluminum roller firmly alongside of remainder of roll.

3. Tape exposed end of roll to roller while continuing to hold roller firmly against roll.

4. After taping, transfer remainder of roll to aluminum roller.

5. While rolling, tap roller from one end or the other when necessary to prevent roll from telescoping.

6. Install Cutting Edge.
